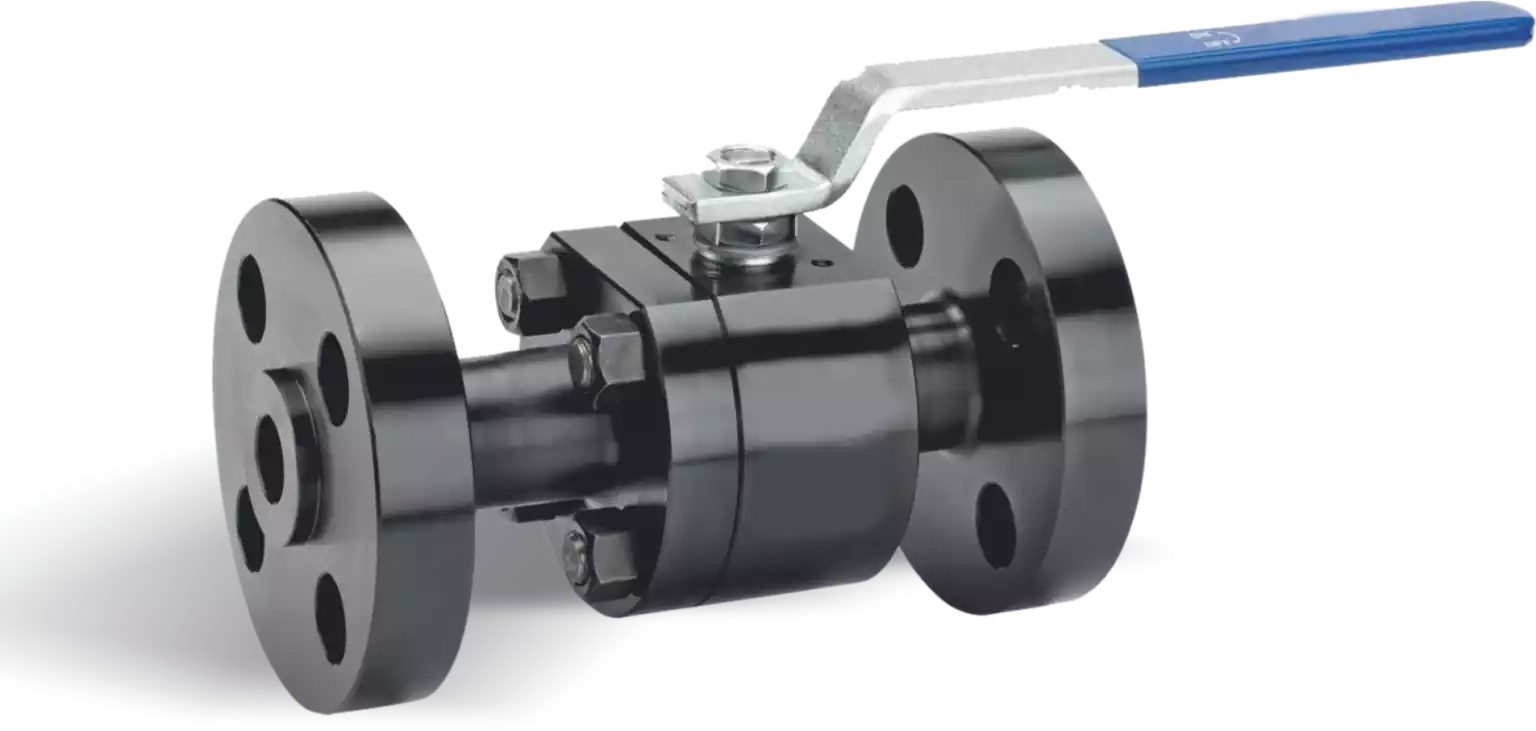

Floating Ball Valve

Floating Ball Valve

Description:

This product line is used primarily in the Oil & Gas, Building and construction Industries, Chemaical and Petrochemical services, among other. Flownotion offers Floating Ball valves to provide positive shut-off while minimizing pressure drop..

Codes & Standards

Design : BS EN ISO 17292 / API 6D
Testing : EN 12266-I

Design Features

  1. ISO 5211 mounting pad.
  2. Antistatic device to ensure electrical continuity which provides great level of safety.
  3. Fire safe conformance to API 607 / API 6A.
  4. Anti-Blow-out proof stem design.
  5. Metal to Metal seating for high temperature service.
  6. Special case balls with tungsten carbide/ENP/Stellite coating for metal seating.
  7. Extended stem for low temperature / cryogenic applications.
  8. Available with different seating options.
  9. Actuation with Lever, Gear, Pneumatic actuator, Electric Actuator, Positioner.

Valve Types Size Range Class Rating Shall Material Specifcation
2 & 3 PIECES FLOATING 15FB-50FB 15RB-50RB 800#
  1. ASTM A 351 GR. CF8, CF8M, CF3, CF3M
  2. ASTM A 216 GR. WCA, WCB,WCC
  3. ASTM A 182 GR. F304L, F316L
  4. ASTM A 105
2 PIECE FLOATING 15FB-250FB 15RB-300RB 150# & 300#
  1. ASTM A 351 GR. CF8, CF8M, CF3, CF3M
  2. ASTM A 216 GR. WCA, WCB,WCC
  3. ASTM A 182 GR. F304L, F316L
  4. ASTM A 105
3 PIECE FLOATING 15FB-50FB 15RB-50RB 150#
  1. ASTM A 351 GR. CF8, CF8M, CF3, CF3M
  2. ASTM A 216 GR. WCA, WCB,WCC
  3. ASTM A 182 GR. F304L, F316L
  4. ASTM A 105
