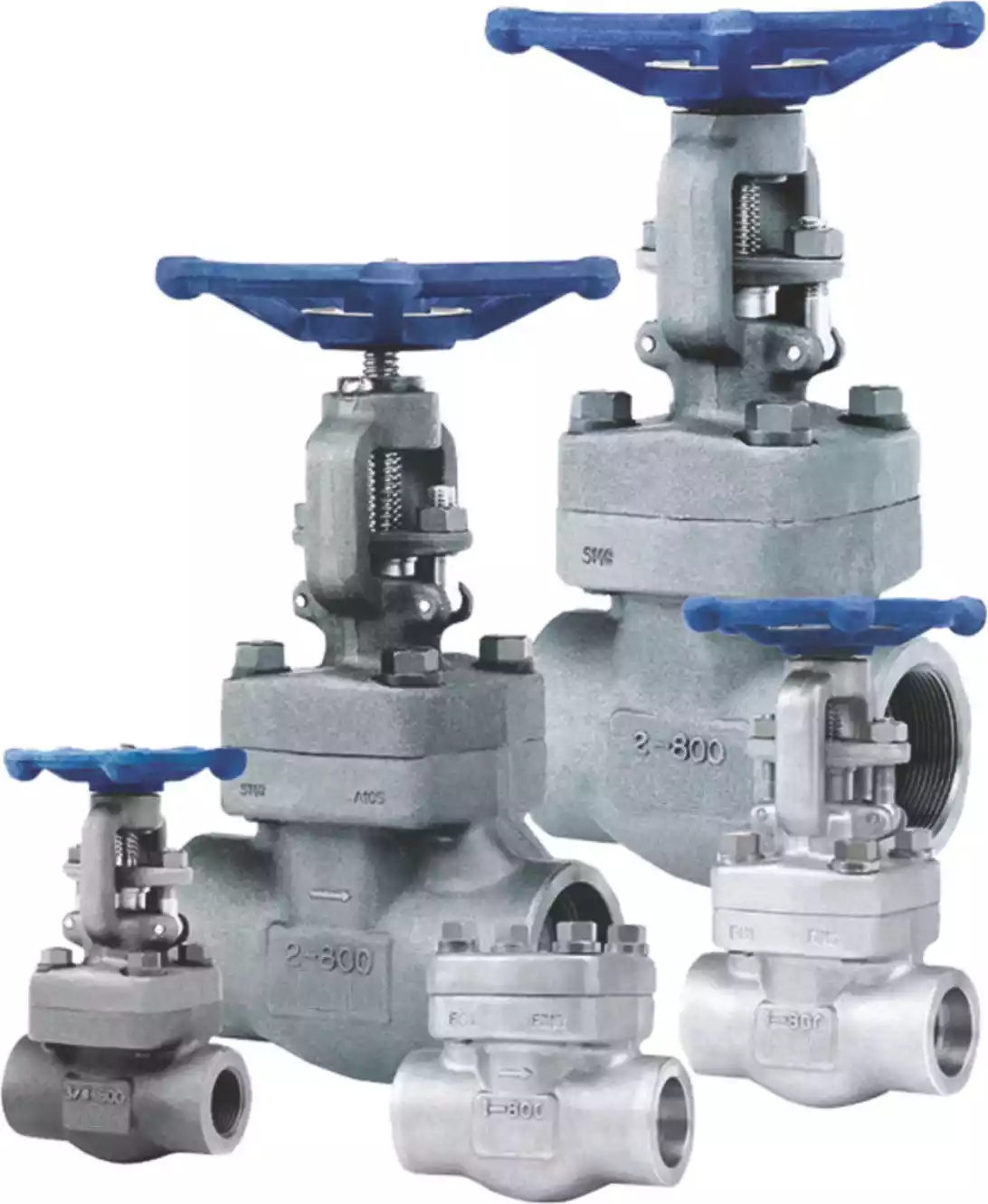

Forged Steel Valves

Forged Steel Valves

Description:

Forged Steel Valves are widely used in Power, Oil & Gas, Fertilizer, Refineries & Petrochemical industries.

Codes & Standards

Design : API 602 / BS EN ISO 15761
Testing : API 598

Design Features

  1. OS & Y Type with Bolted Bonnet or Welded Bonnet options.
  2. Stem packing is designed for optimum control of fugitive emissions leakage to the atmosphere.
  3. Back seat designed to relieve back pressure on the stem packing when fully seated.
  4. Metal seated suitable for high temperature service.
  5. Uniform load on body & Bonnet gasket joint to assure leak proof seal.

Valve Types Size Range Class Rating Connection Material Of Construcation
Gate Valve 15 - 50 # 800 / # 1500 / # 2500 Screwed / Socket Weld / Butt Weld
  1. ASTM A 105
  2. ASTM A 182 F304/F304L, F316/F316L
Globe Valve 15 - 50 # 800 / # 1500 / # 2500 Screwed / Socket Weld / Butt Weld
  1. ASTM A 105
  2. ASTM A 182 F304/F304L, F316/F316L
Check Valve 15 - 50 # 800 / # 1500 / # 2500 Screwed / Socket Weld / Butt Weld
  1. ASTM A 105
  2. ASTM A 182 F304/F304L, F316/F316L
